Angular on Azure App Service & Spring Boot Microservices on AKS with CI/CD, Helm, Azure DevOps, Prometheus, Grafana & Log Analytics: End-to-End Deployment

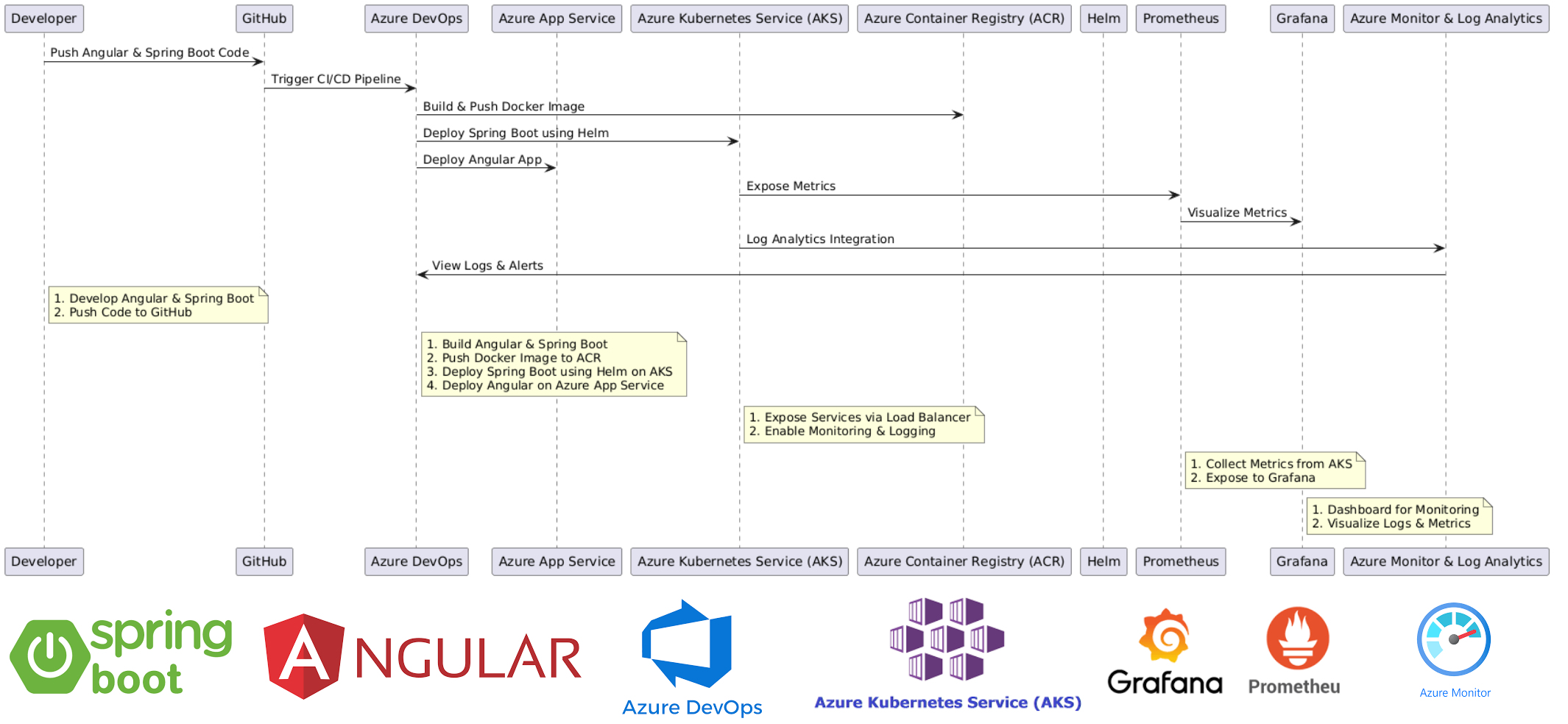

This diagram represents the end-to-end deployment workflow of an Angular frontend and Spring Boot microservices on Azure using Azure DevOps, Kubernetes, Helm, Prometheus, and Grafana.

Key Flow:

  1. Code Development & Push: Developer writes Angular & Spring Boot code and pushes it to GitHub.
  2. CI/CD with Azure DevOps: GitHub triggers a CI/CD pipeline in Azure DevOps, which builds the project and pushes the Docker image to Azure Container Registry (ACR).
  3. Deployment:
    • Spring Boot microservices are deployed on Azure Kubernetes Service (AKS) using Helm.
    • The Angular frontend is deployed on Azure App Service.
  4. Monitoring & Logging:
    • Prometheus collects metrics from AKS and sends them to Grafana for visualization.
    • Azure Monitor & Log Analytics track logs and alerts.

This ensures automated deployments, monitoring, and logging for a production-ready cloud environment.

End-to-End Deployment Guide

Overview

This guide covers the complete deployment of:

  • Angular on Azure App Service
  • Spring Boot Microservices on Azure Kubernetes Service (AKS)
  • CI/CD using Azure DevOps
  • Integration with Helm, Azure Monitor, Log Analytics, Prometheus, and Grafana

1️⃣ Create Spring Boot "Hello World" Microservice

Step 1: Initialize Spring Boot

Generate a project using Spring Initializr or run:

curl https://start.spring.io/starter.zip -d dependencies=web -d language=java -o backend.zip
unzip backend.zip -d spring-boot-backend
cd spring-boot-backend

Step 2: Create a REST Controller

Edit src/main/java/com/example/demo/HelloController.java:

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/api")
public class HelloController {
    @GetMapping("/hello")
    public String sayHello() {
        return "Hello, World from Spring Boot!";
    }
}

Step 3: Add Prometheus Metrics

Add Micrometer Prometheus dependency in pom.xml:

<dependency>
    <groupId>io.micrometer</groupId>
    <artifactId>micrometer-registry-prometheus</artifactId>
</dependency>

Expose metrics in application.properties:

management.endpoints.web.exposure.include=metrics,prometheus

Step 4: Run Locally

mvn spring-boot:run

Check API: http://localhost:8080/api/hello

Check Metrics: http://localhost:8080/actuator/prometheus

2️⃣ Create Angular "Hello World" Frontend

Step 1: Create Angular Project

ng new hello-world-angular
cd hello-world-angular
ng add @angular/material

Step 2: Create API Service

Edit src/app/api.service.ts:

import { HttpClient } from '@angular/common/http';
import { Injectable } from '@angular/core';
import { Observable } from 'rxjs';

@Injectable({
  providedIn: 'root'
})
export class ApiService {
  private apiUrl = 'http://<AKS-IP-Address>/api/hello';

  constructor(private http: HttpClient) {}

  getHelloMessage(): Observable<string> {
    return this.http.get(this.apiUrl, { responseType: 'text' });
  }
}

3️⃣ Push Code to GitHub

git init
git remote add origin https://github.com/yourusername/your-repo.git
git add .
git commit -m "Initial commit"
git push -u origin main

4️⃣ Deploy Angular on Azure App Service

Step 1: Build & Deploy

ng build --configuration=production
az webapp create --resource-group <resource-group> --plan <app-service-plan> --name <angular-app-name> --runtime "NODE|18-lts"
az webapp deployment source config-zip --resource-group <resource-group> --name <angular-app-name> --src <path-to-zip-file>

5️⃣ Deploy Spring Boot Microservices on AKS using Helm

Step 1: Create AKS Cluster

az aks create --resource-group <resource-group> --name <aks-cluster> --node-count 2 --enable-addons monitoring --generate-ssh-keys

Step 2: Deploy with Helm

Create Helm Chart

helm create hello-world-chart
cd hello-world-chart

Edit values.yaml:

replicaCount: 2

image:
  repository: myacr.azurecr.io/hello-world
  tag: v1
  pullPolicy: Always

service:
  type: LoadBalancer
  port: 80
  targetPort: 8080

Deploy Helm Chart

helm install hello-world-release ./hello-world-chart

6️⃣ Enable Azure Monitor & Log Analytics

Step 1: Enable Log Analytics for AKS

az monitor log-analytics workspace create --resource-group <resource-group> --workspace-name <workspace-name>
az aks enable-addons --resource-group <resource-group> --name <aks-cluster> --addons monitoring --workspace-resource-id <workspace-id>

Step 2: View Logs

az monitor log-analytics query --workspace <workspace-id> --analytics-query "ContainerLog | take 10"

7️⃣ Install Prometheus & Grafana for Monitoring

Step 1: Add Helm Repo

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo update

Step 2: Install Prometheus

helm install prometheus prometheus-community/prometheus --namespace monitoring --create-namespace

Step 3: Install Grafana

helm install grafana prometheus-community/grafana --namespace monitoring

Step 4: Get Grafana Admin Password

kubectl get secret --namespace monitoring grafana -o jsonpath="{.data.admin-password}" | base64 --decode

Step 5: Access Grafana Dashboard

kubectl port-forward --namespace monitoring service/grafana 3000:80

Visit: http://localhost:3000 Login with admin and the retrieved password.

8️⃣ Azure DevOps CI/CD for Spring Boot

trigger:
  - main

pool:
  vmImage: 'ubuntu-latest'

steps:
  - task: Maven@3
    inputs:
      mavenPomFile: 'pom.xml'
      goals: 'package'

  - task: Docker@2
    inputs:
      containerRegistry: 'myacr'
      repository: 'hello-world'
      command: 'buildAndPush'
      Dockerfile: '**/Dockerfile'

  - task: HelmDeploy@0
    inputs:
      connectionType: 'Azure Resource Manager'
      azureSubscription: '<azure-subscription-name>'
      azureResourceGroup: '<resource-group-name>'
      kubernetesCluster: '<aks-cluster-name>'
      command: 'upgrade'
      chartType: 'FilePath'
      chartPath: 'hello-world-chart'
      releaseName: 'hello-world-release'

🎯 Final Setup

✅ Angular App Running on Azure App Service

✅ Spring Boot Microservices Running on AKS with Helm

✅ CI/CD Automated with Azure DevOps

✅ Azure Monitor & Log Analytics Integrated

✅ Prometheus & Grafana Installed for Monitoring
